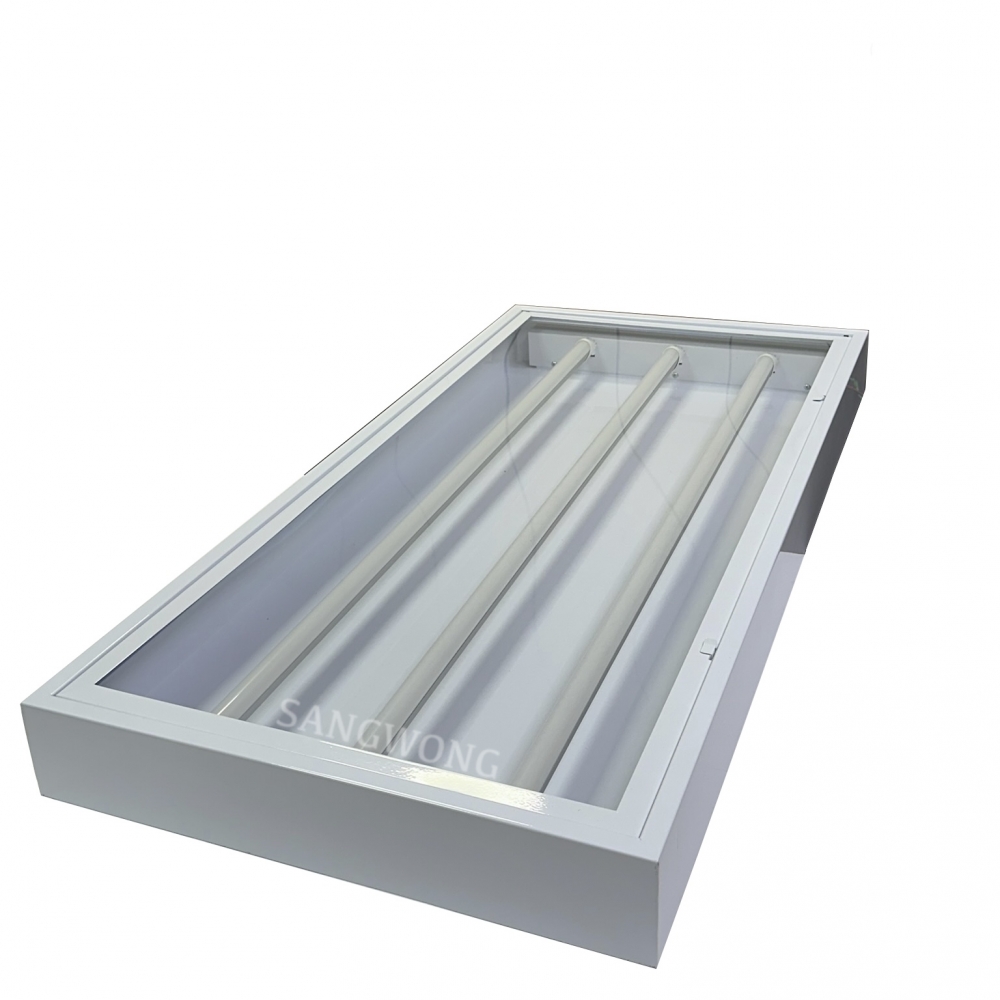

T-BAR型無塵室專用燈具 T-BAR Cleanroom Luminaire
C2產品特色：
➊ 本產品適用於天花板採輕鋼架T-BAR或Ceiling Grid型的無塵室
➋ 本產品採用無縫設計，可抗天花板上下之空氣壓差，電源線出現口加裝迫緊頭，可將含塵的空氣完全隔離
➌ 尺寸可以多種選擇，配合輕鋼架或Ceiling Grid開孔尺寸
➍ 燈罩或反射板有不變形，不變透光度，不吸塵之特性
C2型號選用說明：
| 規格說明 | 燈罩 | 燈管顏色 | 尺寸 (mm) |
|
➀ T8 LED 2尺×4管 ➁ T8 LED 4尺×2管 ➂ T8 LED 4尺×3管 ➃ T5 LED 4尺×2管 ➄ T5 LED 4尺×3管 |
➀ 擴散板型 ➁ 透明壓克力 ➂ 強化玻璃
|
➀ 白色燈管 ➁ 黃色燈管 |
➀ 600×600×100 ➁ 1220×600×100 ➂ 1170×570×100 |
C2 Features：
➊ This product is suitable for cleanrooms with lightweight steel frame T-BAR or Ceiling Grid ceilings.
➋ The product employs a seamless design to resist changes in air pressure between the ceiling and features a cable outlet with a tight seal to completely isolate dust-containing air.
➌ Multiple size options available to match the openings of lightweight steel frame or Ceiling Grid.
➍ The lampshade or reflector maintains its shape, light transmittance, and is dust-repellent.
C2 Model Selection Guide：
| Lamp Type | Lampshade Material | Lamp Tube Color | Dimensions (mm) |
|
➀ T8 LED 2 feet × 4 tubes ➁ T8 LED 4 feet × 2 tubes ➂ T8 LED 4 feet × 3 tubes ➃ T5 LED 4 feet ×2 tubes ➄ T5 LED 4 feet × 3 tubes
|
➀ White diffuser ➁ Clear acrylic ➂ Reinforced glass
|
➀ White lamp tubes ➁ Yellow lamp tubes |
➀ 600×600×100 ➁ 1220×600×100 ➂ 1170×570×100 |
